Vanagon – quick throttle body re-bush

A few years ago i tried re-bushing a spare throttle body using Delrin as the bushing material. I couldn’t get the throttle action smooth, it seemed as if the Delrin had a stiction property that I just couldn’t over come either by sizing the bushing or lubricating. So I laid the project aside and forgot about it.

Then this last summer I noticed some play in the shaft of the throttle body installed in the van. There was enough play to make adjustment of the throttle position switch very fussy. So i though back on my previous experiment and I thought I’d try making bushings again, but this time out of HDPE.

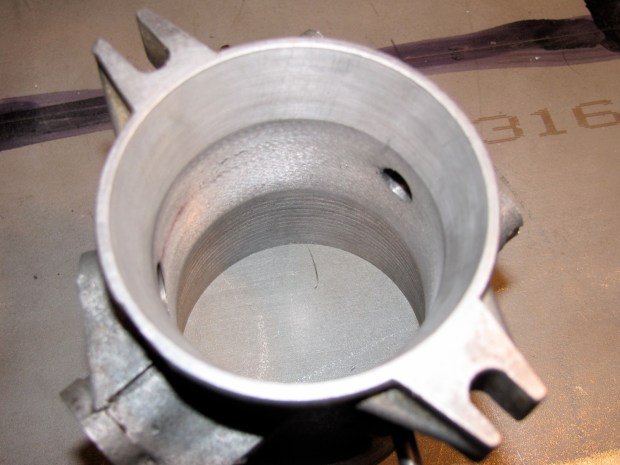

First let’s go back to my spare throttle body, the one I re-bushed with Delrin. I have a blog post here showing it before I started screwing around. I even went as far as cleaning up the wear marks in the bore and making a new butterfly plate to compensate for the now enlarged bore.

IMG_1662

IMG_1663

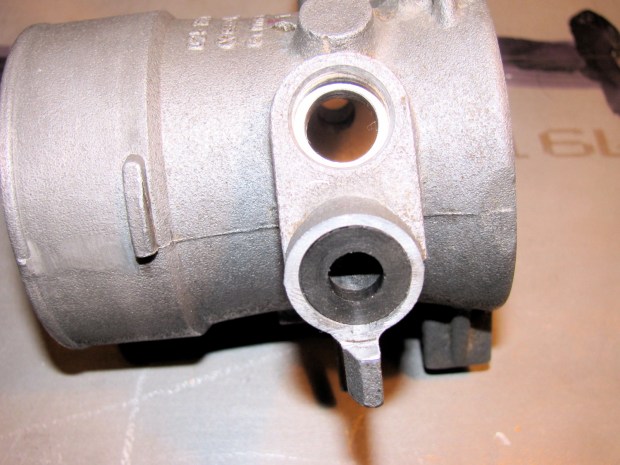

See the Delrin bushing?

IMG_1664

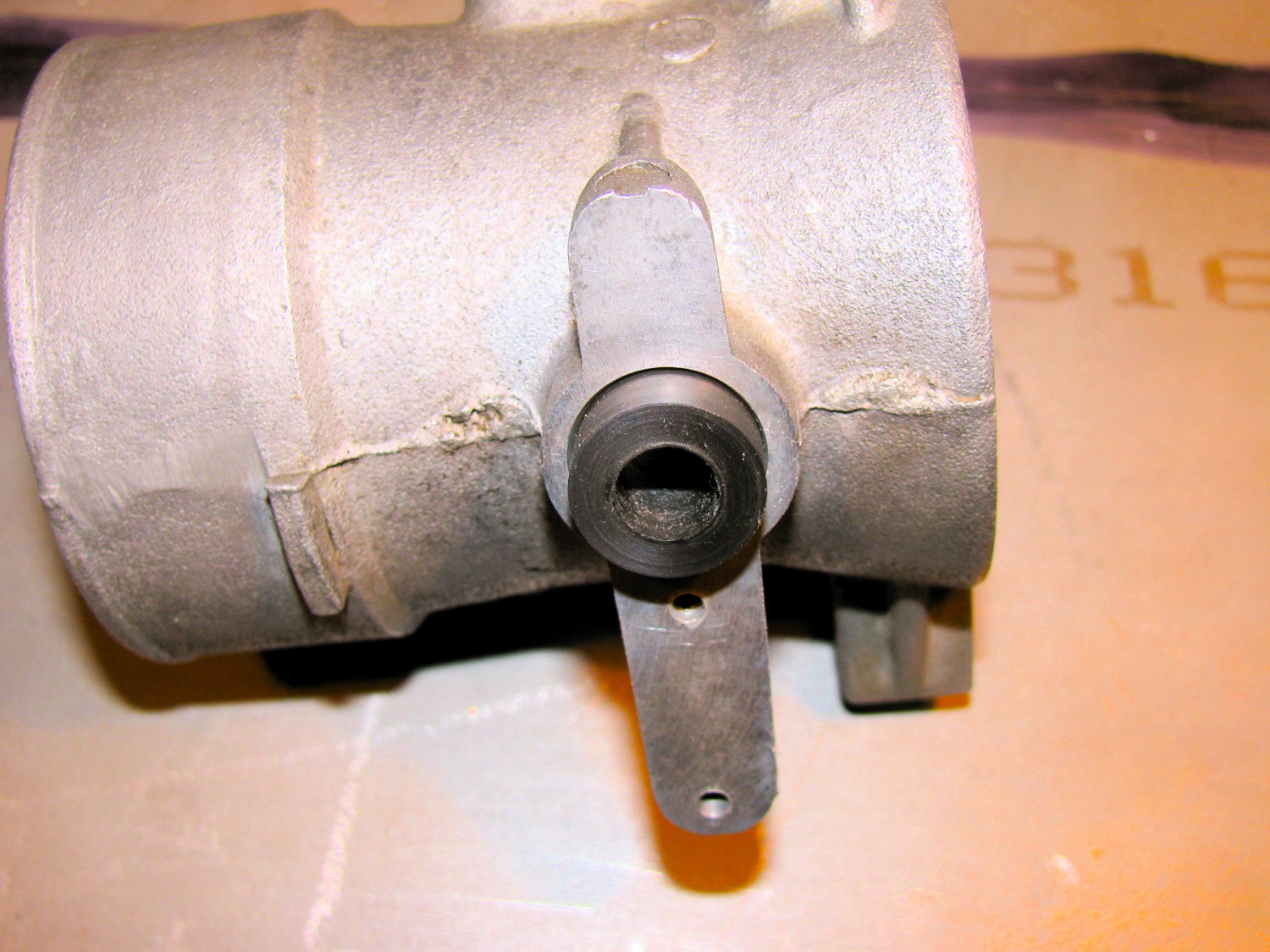

And on the other side, the throttle position switch side.

IMG_1665

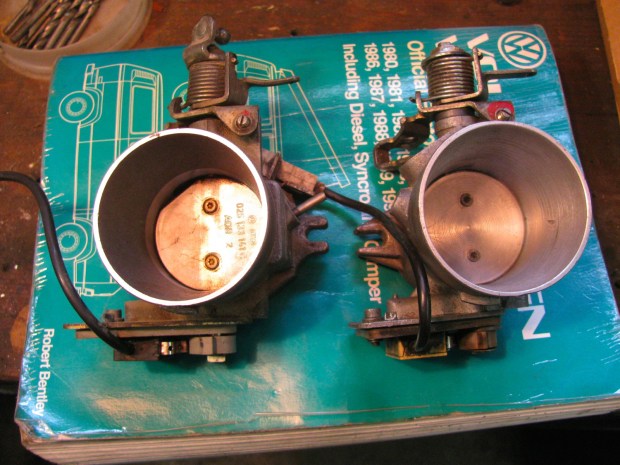

My daily driver one on the left, the re-furbed one on the right.

IMG_3156

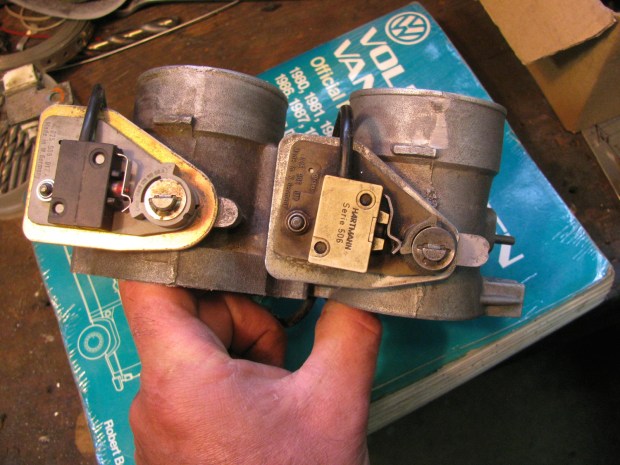

Not the larger cam on the one on the left. This is the newer, revised throttle position switch system.

IMG_3157

It appears like a lot of space around the butterfly, but it really isn’t that bad. I can’t recall the gap size (I measure with wire).

IMG_3158

It kinda looked ok to me.

IMG_3159

The dried up seal on one side.

IMG_3160

And the other.

IMG_3161

Wear in the bore from the butterfly.

IMG_3163



IMG_3164

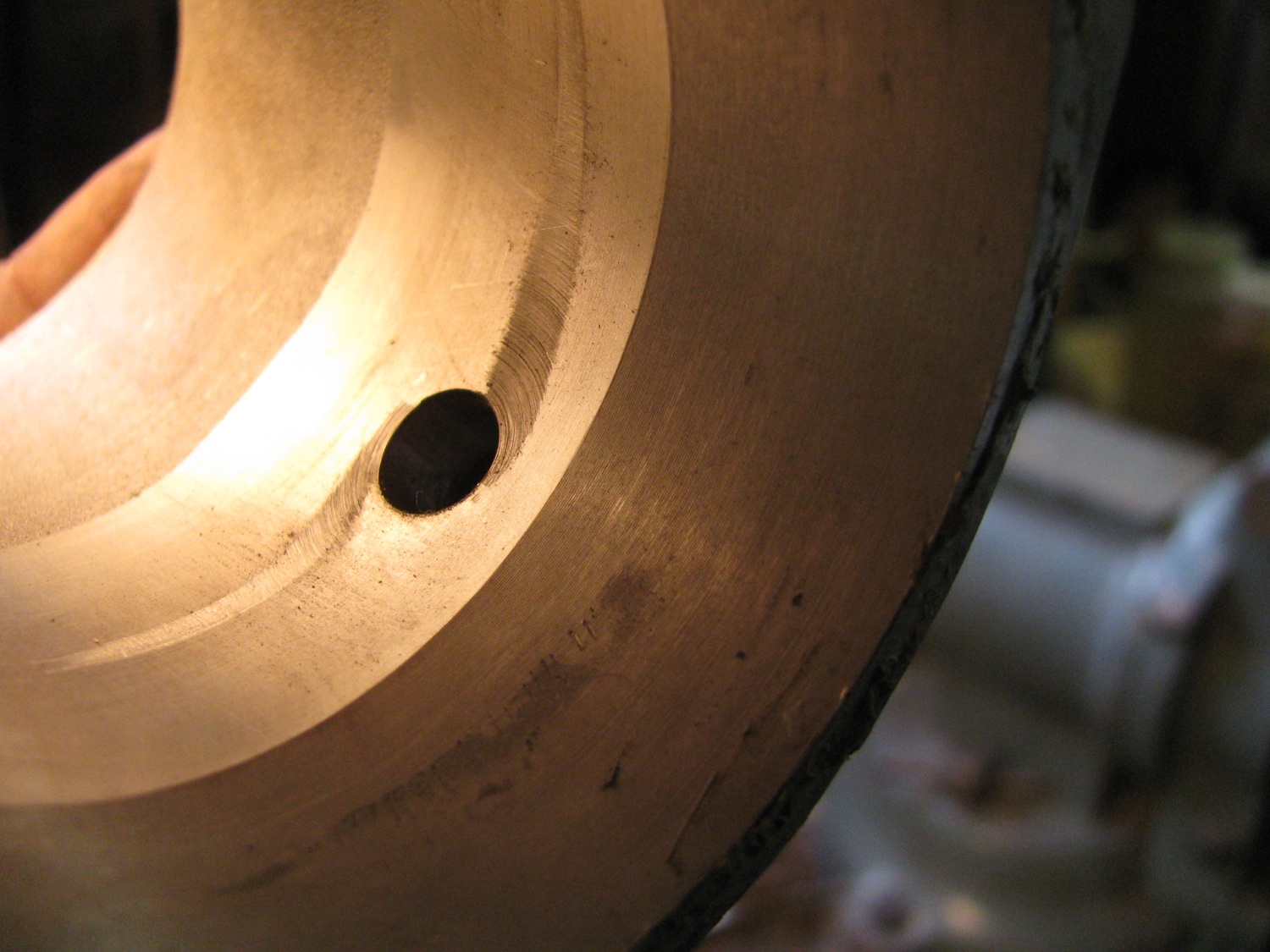

I decided to leave bore and the butterfly untouched. I chucked up a hunk of polyE and turned and reamed a couple of bushings.

IMG_3166

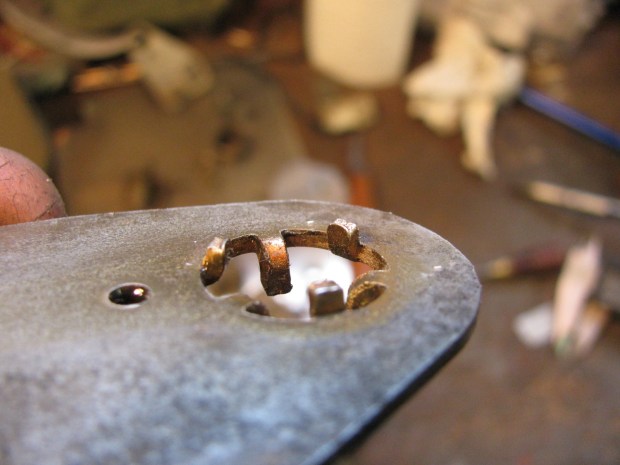

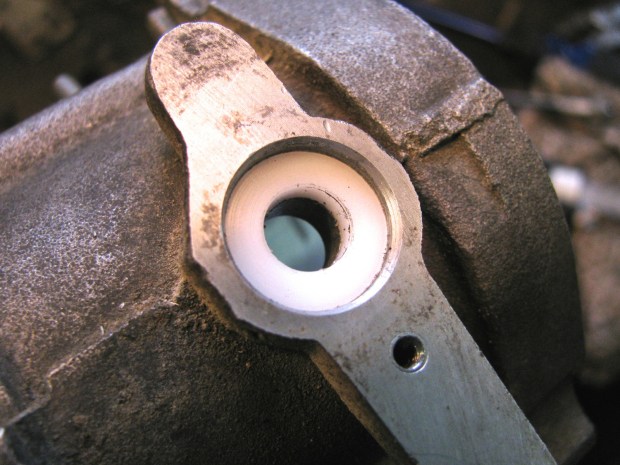

Recessed on the throttle position switch side.Why? because the switch plate has little locating tabs that fit into the hole.

IMG_3167



IMG_3168

Pretty well flush on the other side.

IMG_3169

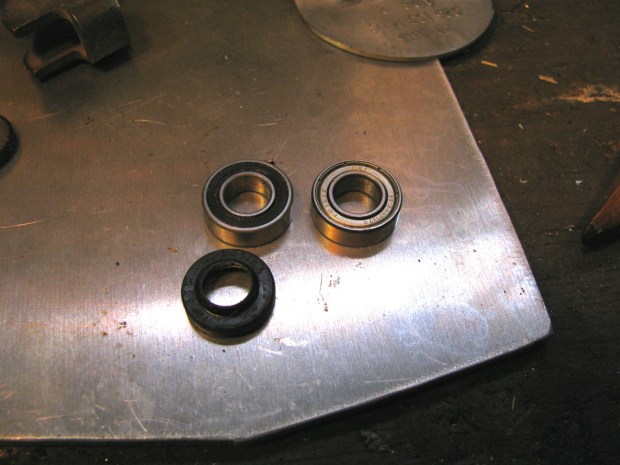

Gosh, i can’t recall for sure the butterfly shaft diameter, maybe it was 8 mm, yeah I think so. I do have an 8mm reamer. Anyhow, I did think about bearings instead of bushings. But the bearings I had on hand had a larger OD and that would have meant taking the throttle body to work to use the milling machine; tedious set up and then a boring head.

IMG_3170

Assembled. I have to say the action of the butterfly is smooth as silk, much better than the Delrin. Come to think about, I wonder if I reamed the bushings the last time?

IMG_3171

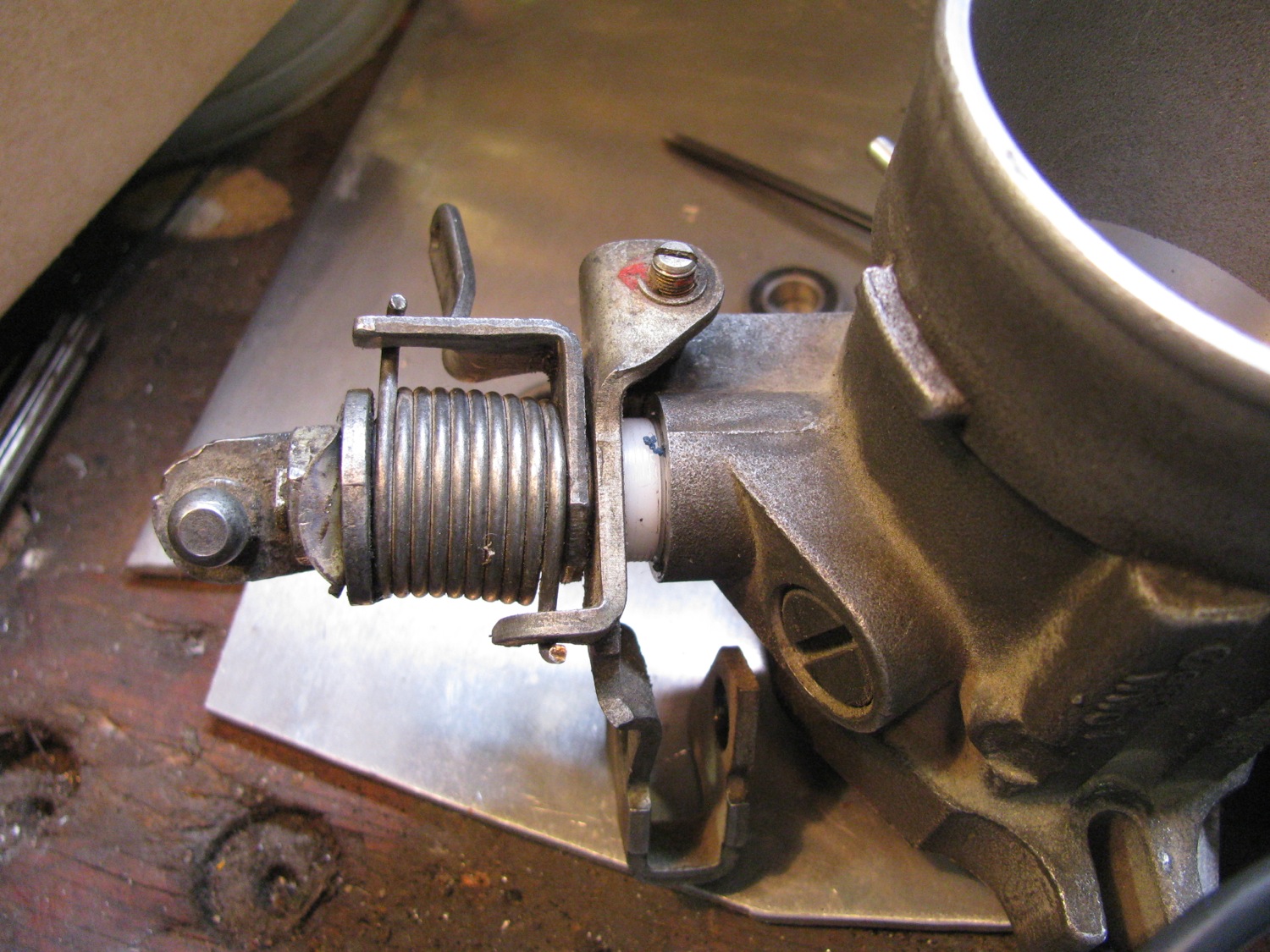

The throttle position switch now is easier to set, there is no wobble in the butterfly shaft.
