VW Tool 681

I have my engine out, the old 2.1wbx. Reasons are a few, won’t go into it right now. But part of the work I need to do involves removing some seals. I thought it try making the VW 681 seal removing too.

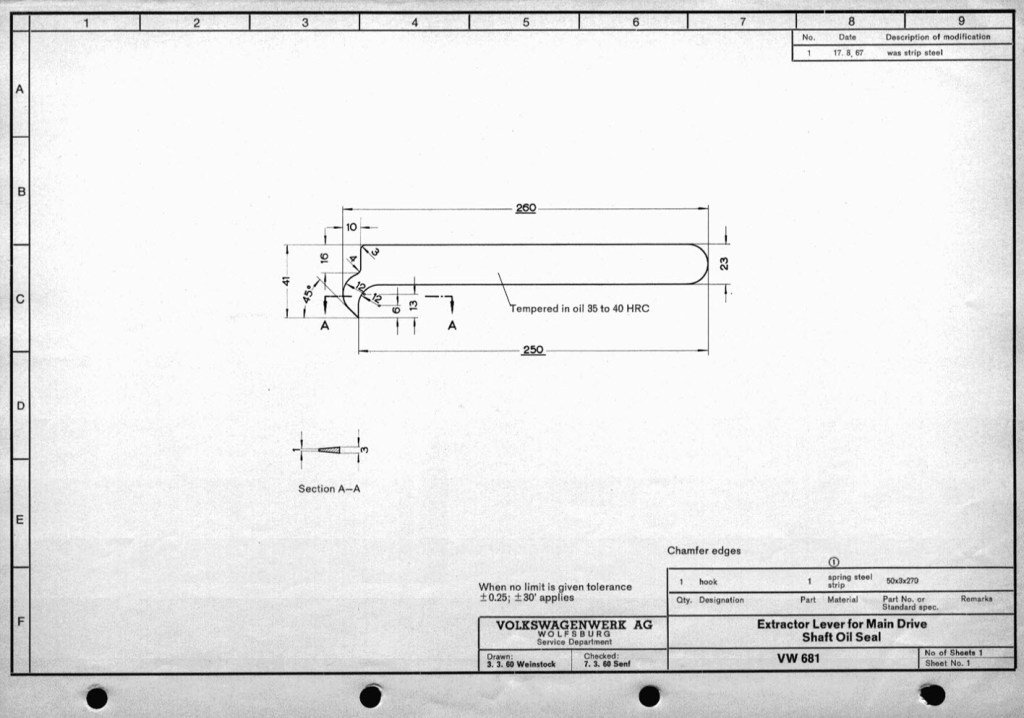

Found drawings on the net, here is a pic

I made a model from the drawing in fusion 360. I’ll append this post tomorrow to include a link the the fusion model and a dxf file, for those wanting to make their own.

The drawing calls for tempered spring steel, and if you can do that it’s a good idea. I think mainly to toughen up the sharp tip of the tool.

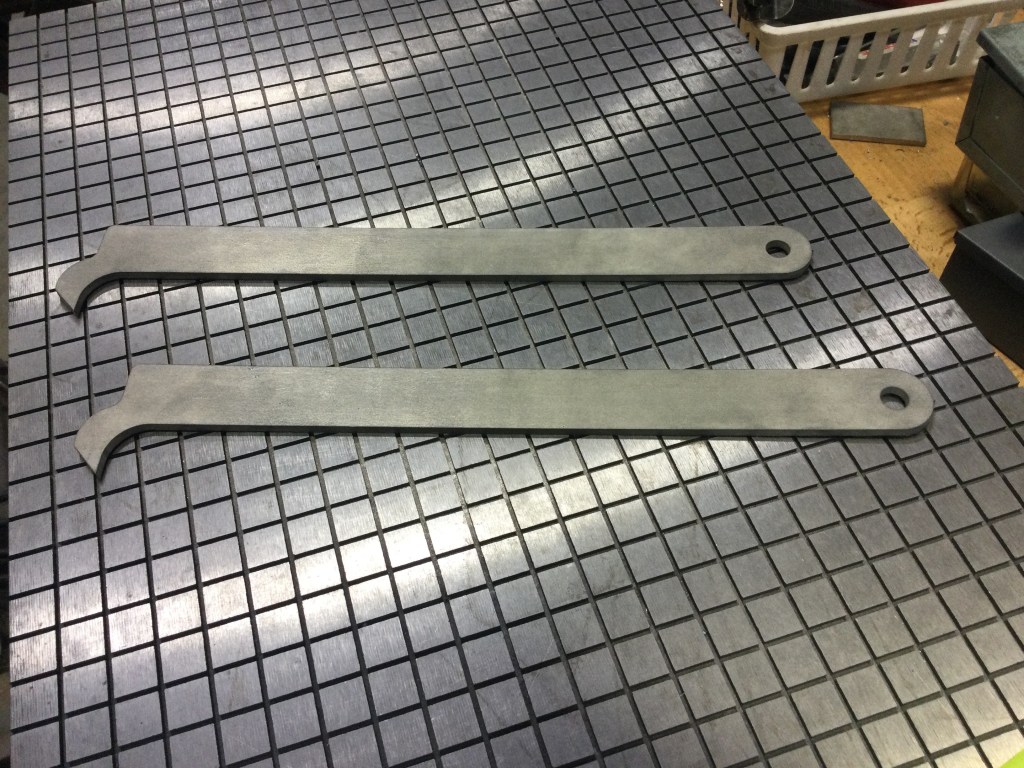

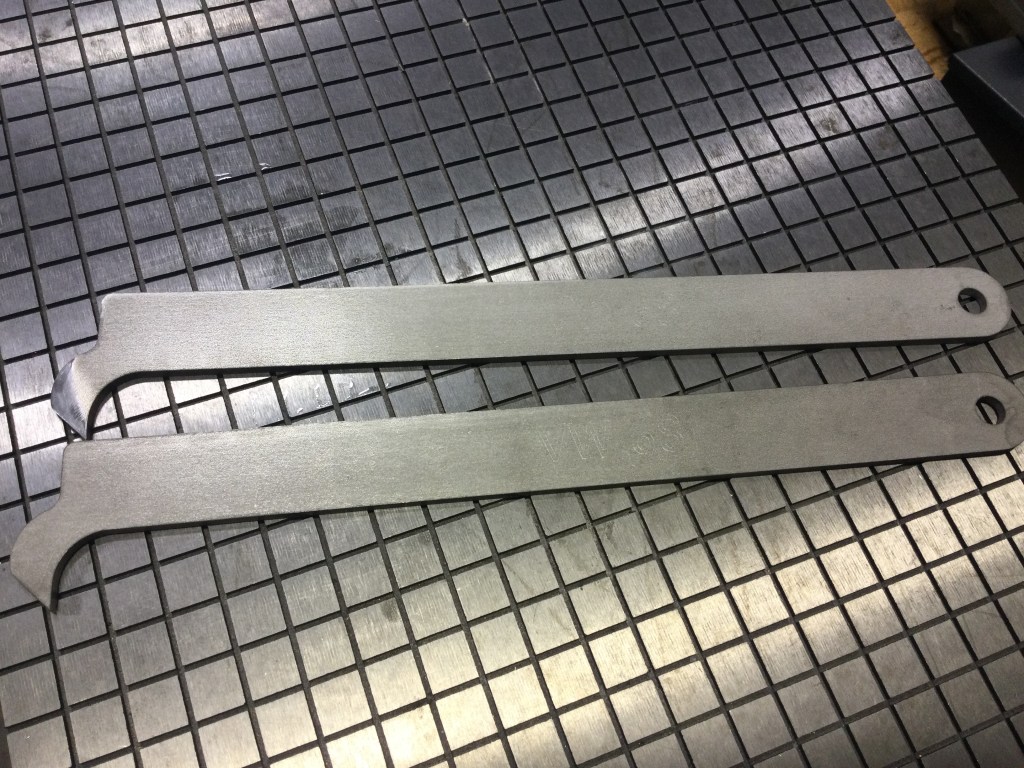

But I used 1/8 304 stainless, as that’s what I had. Waterjet cut then tip ground on belt sander as described ( more or less) on the drawing. Oh and I added a hole at one end for hanging, and I engraved the tool number ( diamond tip scratch engraving, not the most visible)

Dxf and stop files here, zipped.
