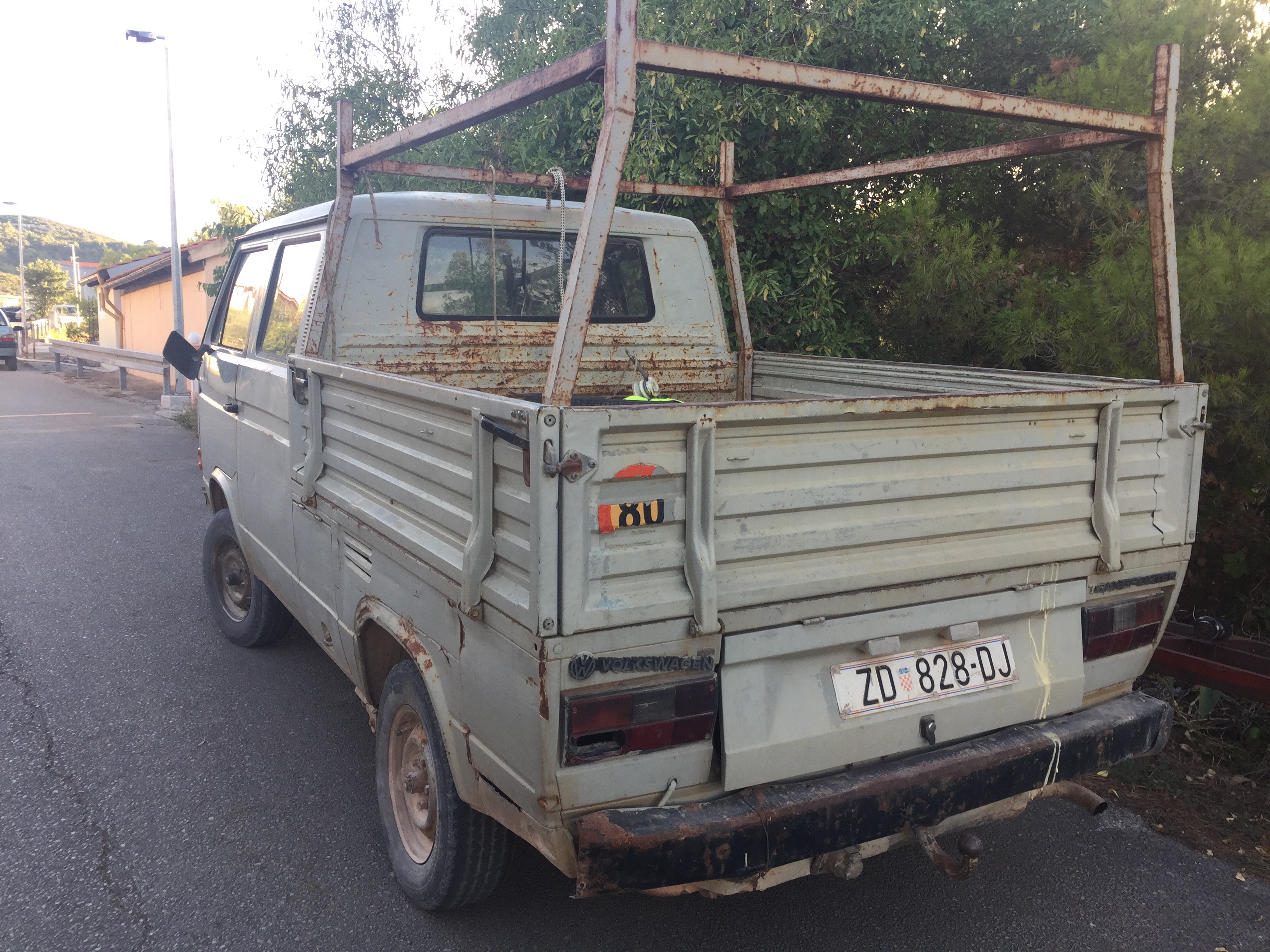

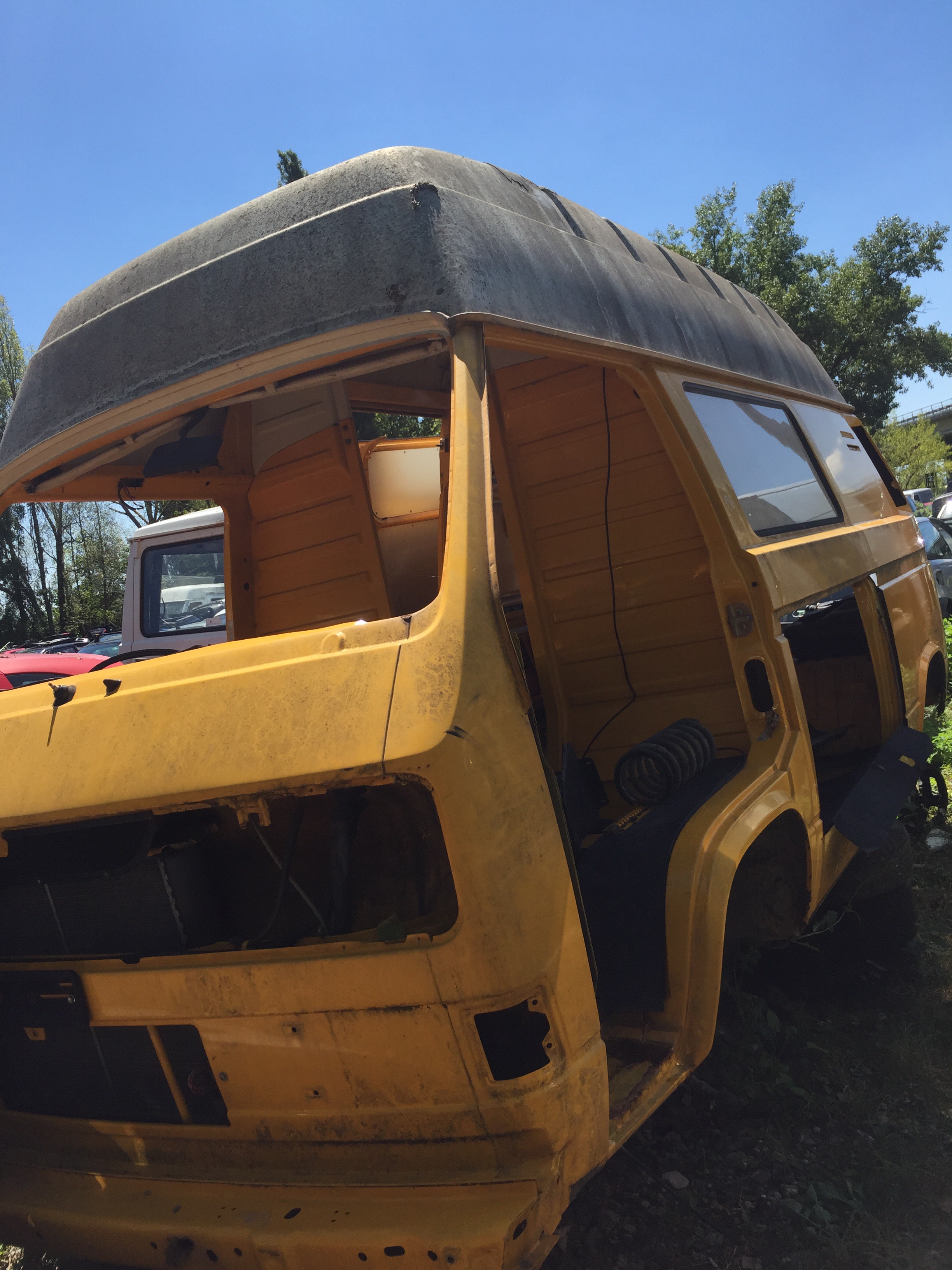

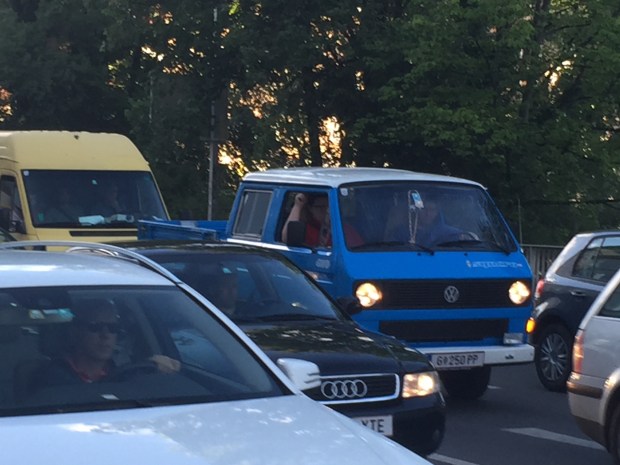

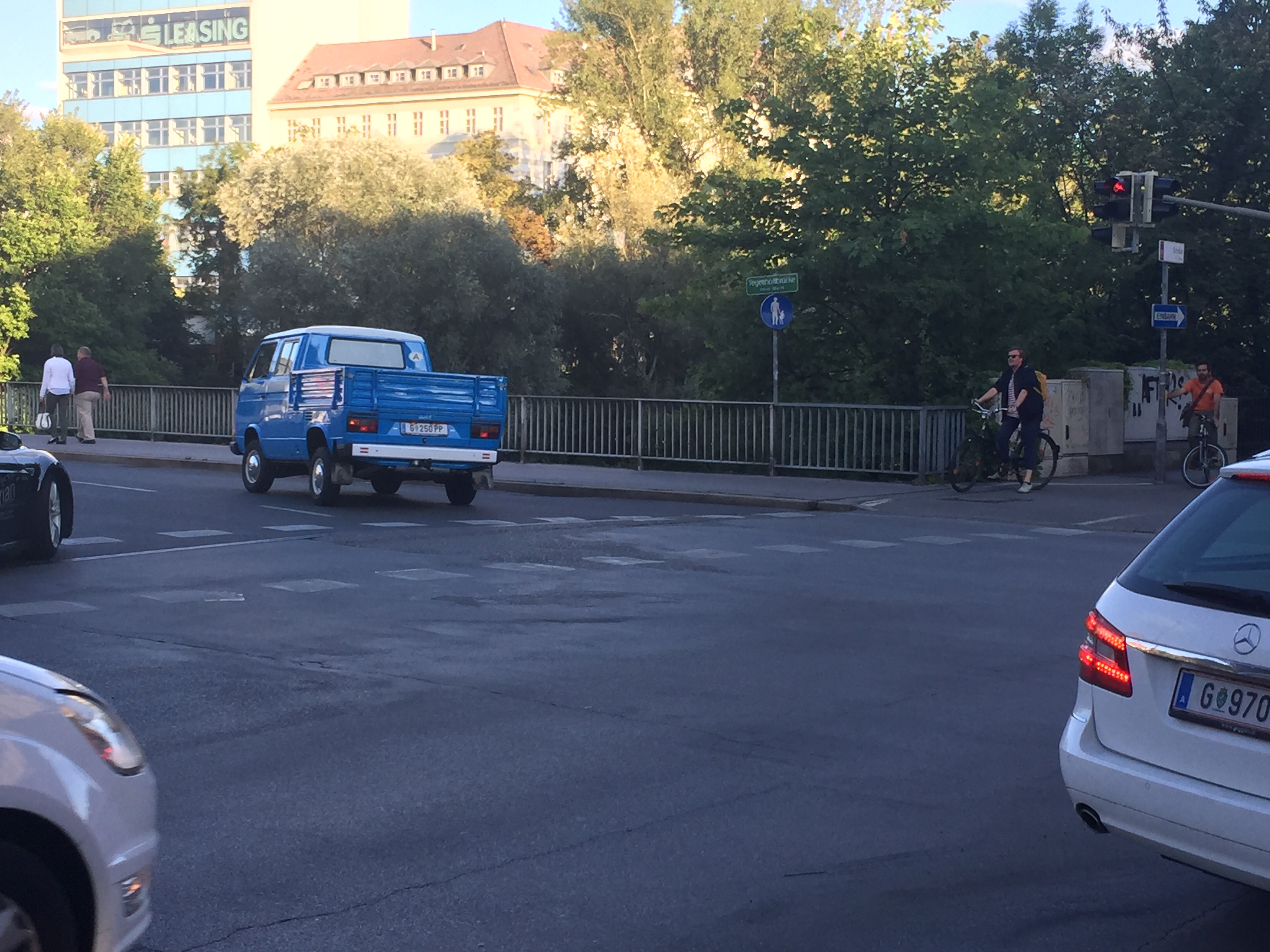

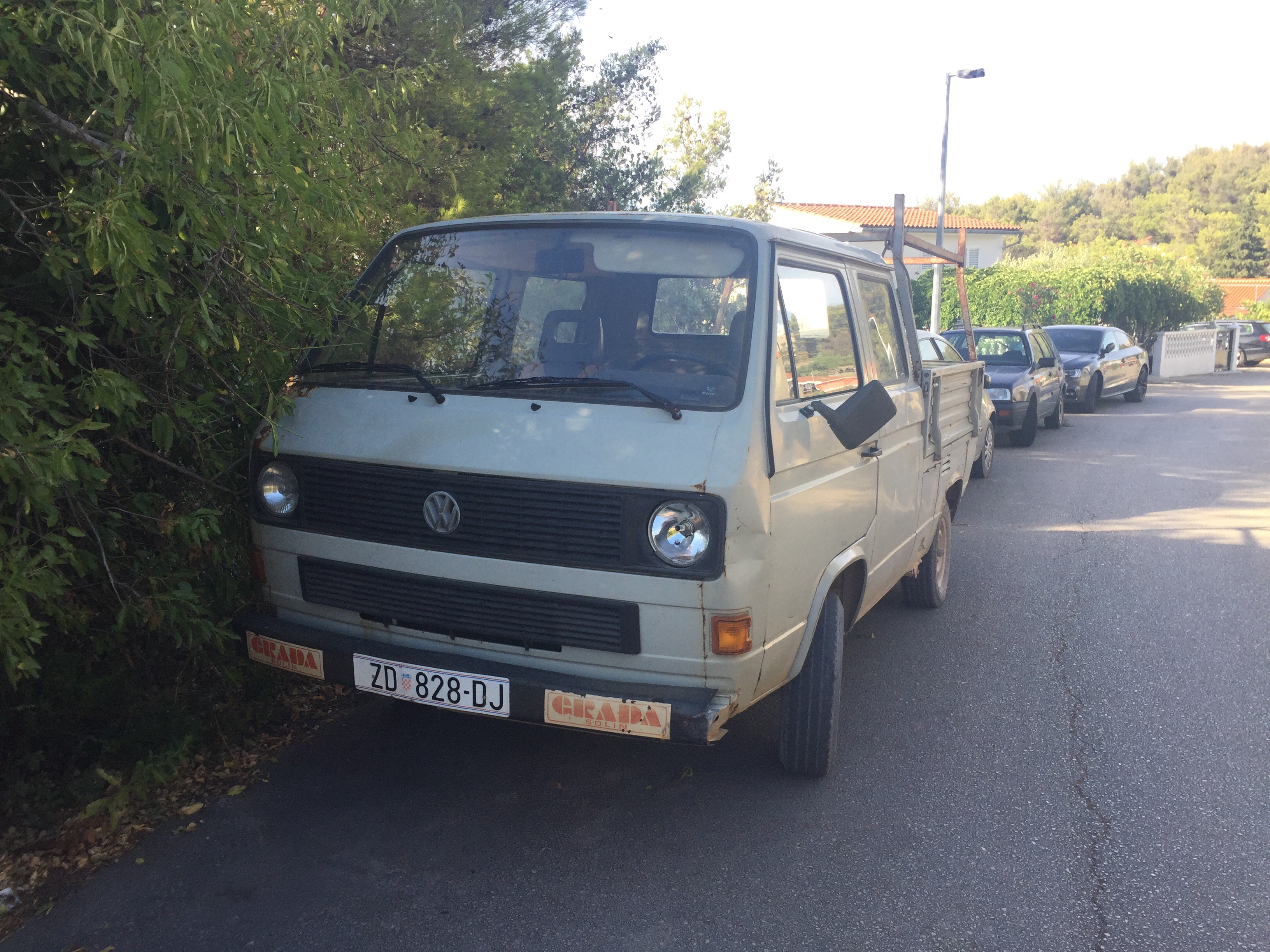

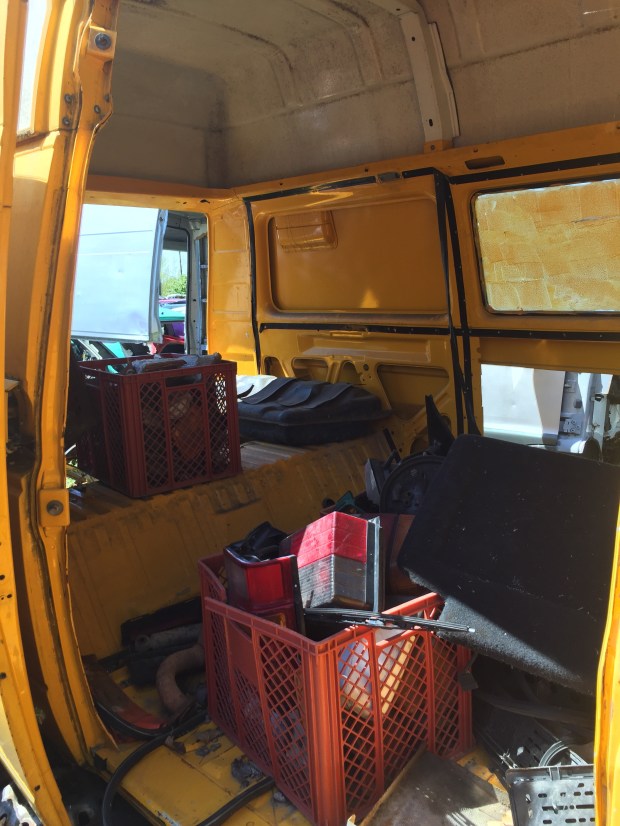

Simon hit a wrecker’s yard. And elsewhere found a hard working 2wd Doka.
Can’t mistake this one, Avro Anson.
Or maybe I can.

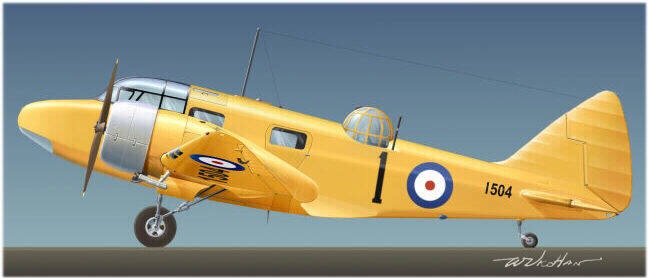

Nope, it’s an Airspeed oxford. Found the markings here, http://www.adf-serials.com.au/nz-serials/nzoxford.htm
Built by Airspeed Ltd, Portsmouth, England. BOC with Unit No.1, Hobsonville on 19 August 1940. Sold to J. Gould from Woodbourne on 10 July 1947 on WARB release number 8629.”
Oxford pics from the net
Anson pics from the net
I’m having a brainstone with this one. Interwar British biplane right? I’m sure I’ve seen a pic of it before but I’m drawing a blank.

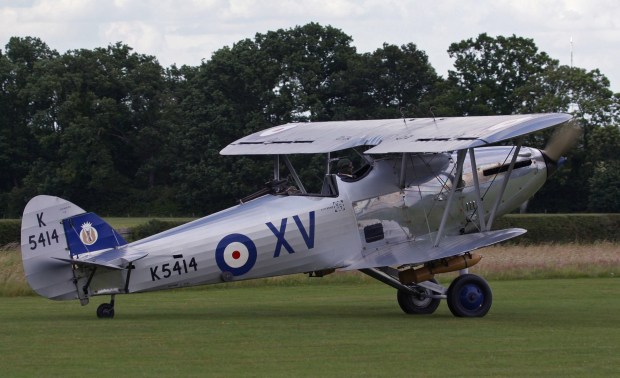

Update July 29, 2017, it’s a Hawker Hart.
And, I found this bit of info on a forum thread ( http://forum.keypublishing.com/showthread.php?26223-Some-pictures-my-Grandfather-gave-me-(warning-large-pics)/page2). Annoyingly, the pics mentioned are photobucket links and are not showing up in the thread.

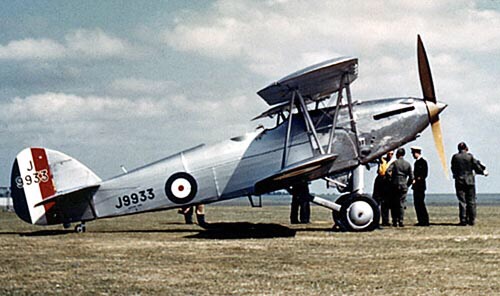

“These Harts are part of the first production batch of 15 (J9933-J9947), of which nearly all served with 33Sqn; the exceptions being J9933, which served with the manufacturers in several different trials, and J9947, which went out to 39Sqn at Raisalpur for tropical trials against its Wapiti IIAs.
J9939 – 33Sqn 5/3/30 – 10/31; to 51Sqn
J9936 – 33Sqn 27/2/30 – 10/31; to 57Sqn
J9934 – 33Sqn 15/3/30; with 18Sqn 9/11/31;
J9946 – 33Sqn 8/5/30 (was fitted with a DC conversion set for trials, authorised 13/3/30); to MKRS 19/6/30 for Brussels meeting, then to 33Sqn 13/9/30; MKRS for demonstration purposes 19/9/30; eventually to 18Sqn 29/10/31 .”
And I found this excerpt of Transcript of RAF Operational Record Book of No. 33 Squadron based at RAF Eastchurch 14 Sep 1929 through 4 Nov 1930
27/2 Hawker Hart J.9936 received in unit
28/2 Hawker Hart J.9938 received in unit
1/3 Hawker Hart J.9940 received in unit
5/3 Hawker Hart J.9939 received in un
15/3 Hawker Hart J.9934 and J.9941 received in unit
Ok, good guesses in the comments, thanks. Is it a Hind?
Got a couple of old pics of airplanes. Not completely sure of the identity of some of them, I’ll make a guess and I hope I can be confirmed or corrected.

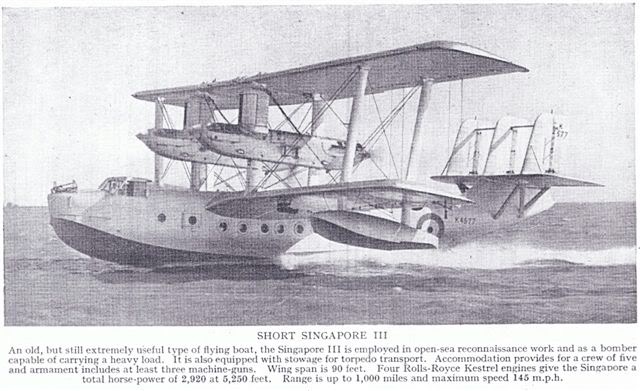

This one I’m guessing is a Short Singapore, Wikipedia entry.
And this info (http://sgforums.com/forums/1164/topics/161750):
“The Singapore I did not go into production, but in August 1933 the Air Ministry ordered four development aircraft from Shorts to Spec. R 3/33 for trials at the Marine Aircraft Experimental Establishment and with squadrons, these being the first Mk. IIIs. The first Mk. III (K 3592) flew on 15 June 1934. Production terminated with K 8859 in June 1937 after 37 had been built for the RAF. The five production batches were K 3592-3595, K 4577-4585, K 6907 – 6922, K 8565-8568 and K 8856-8859.”
And this very interesting link, http://theflyingboatforum.forumlaunch.net/viewtopic.php?f=62&t=534
Has these pics of the same plane that’s in my photo.
And this almost looks like a copy of my pic.

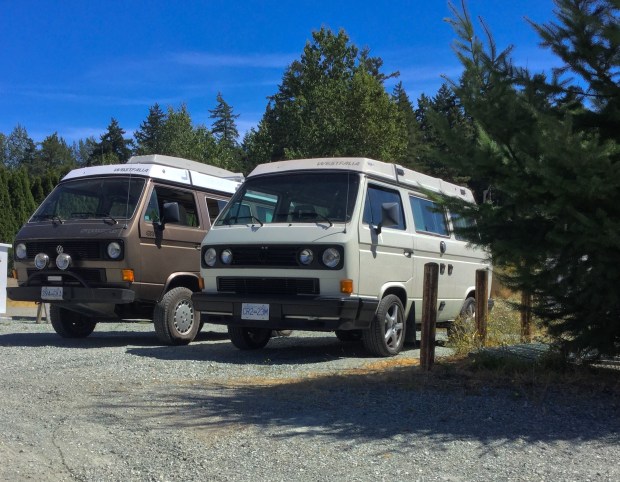

The other van has 18″ rims, nice big brakes up front ( and they do have a great pedal feel ), Go Westy 2.4 wbx. And it has a list of repairs needed.
Might see the owner in the next day or so and I can get some info.
Update, talked to owner.
(Yes I missed the badge on the driver’s side)

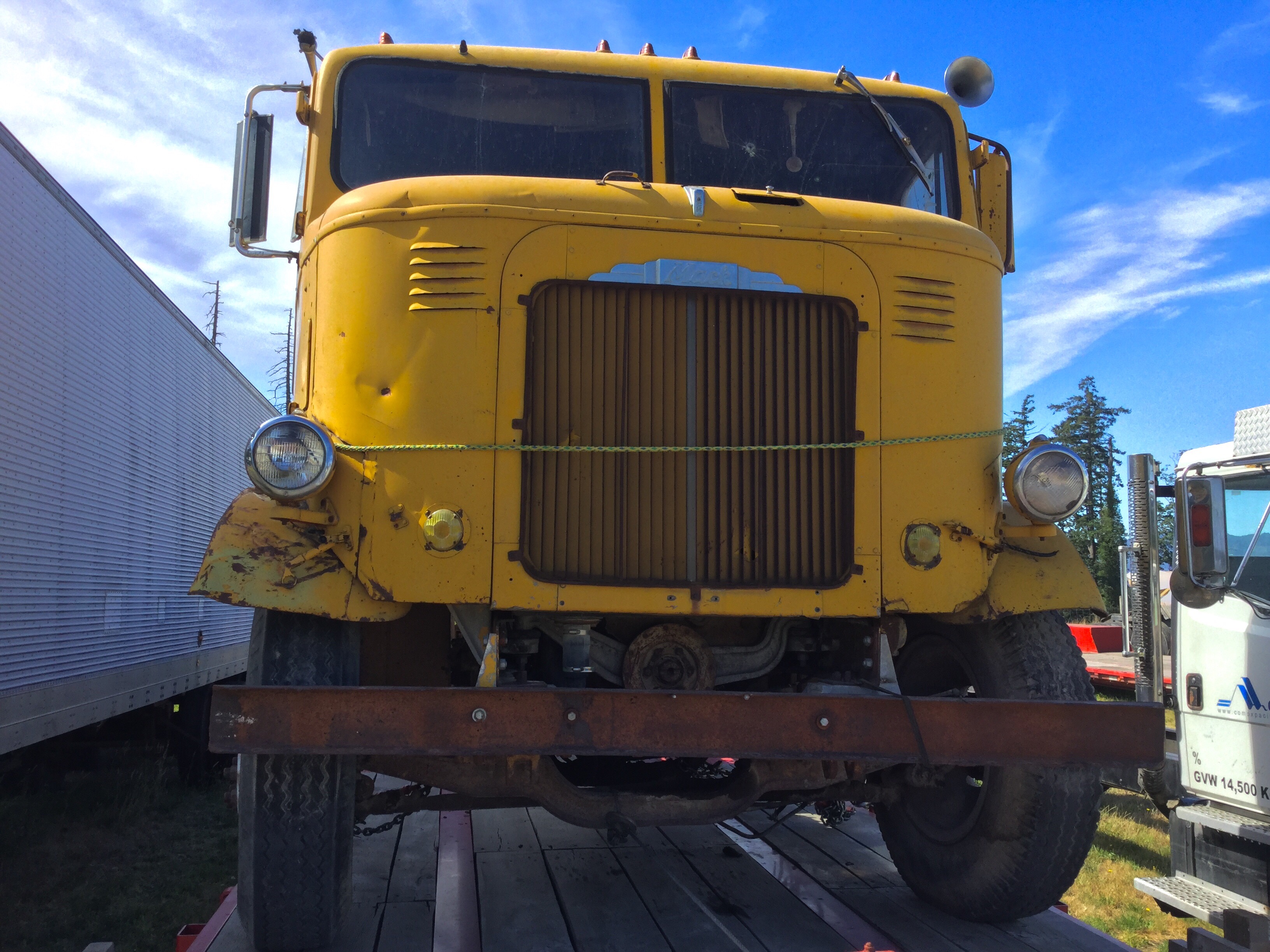

It’s a W-71. Somewhat rare, certainly rare here on the island. This one came off a farm, has the extended cab for sleeper. Cab interior pretty rough but restorable.

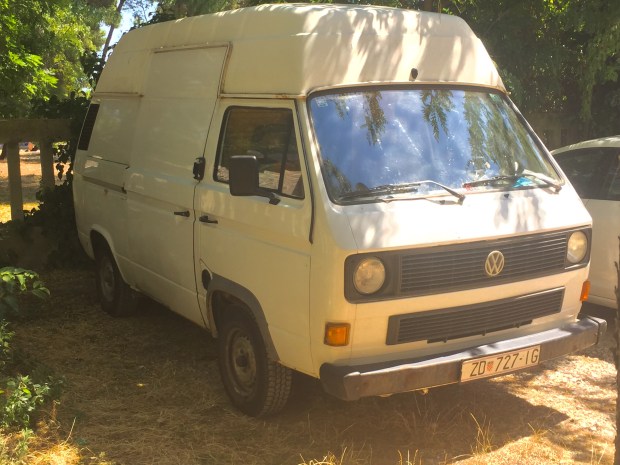

More from Simon in Croatia.

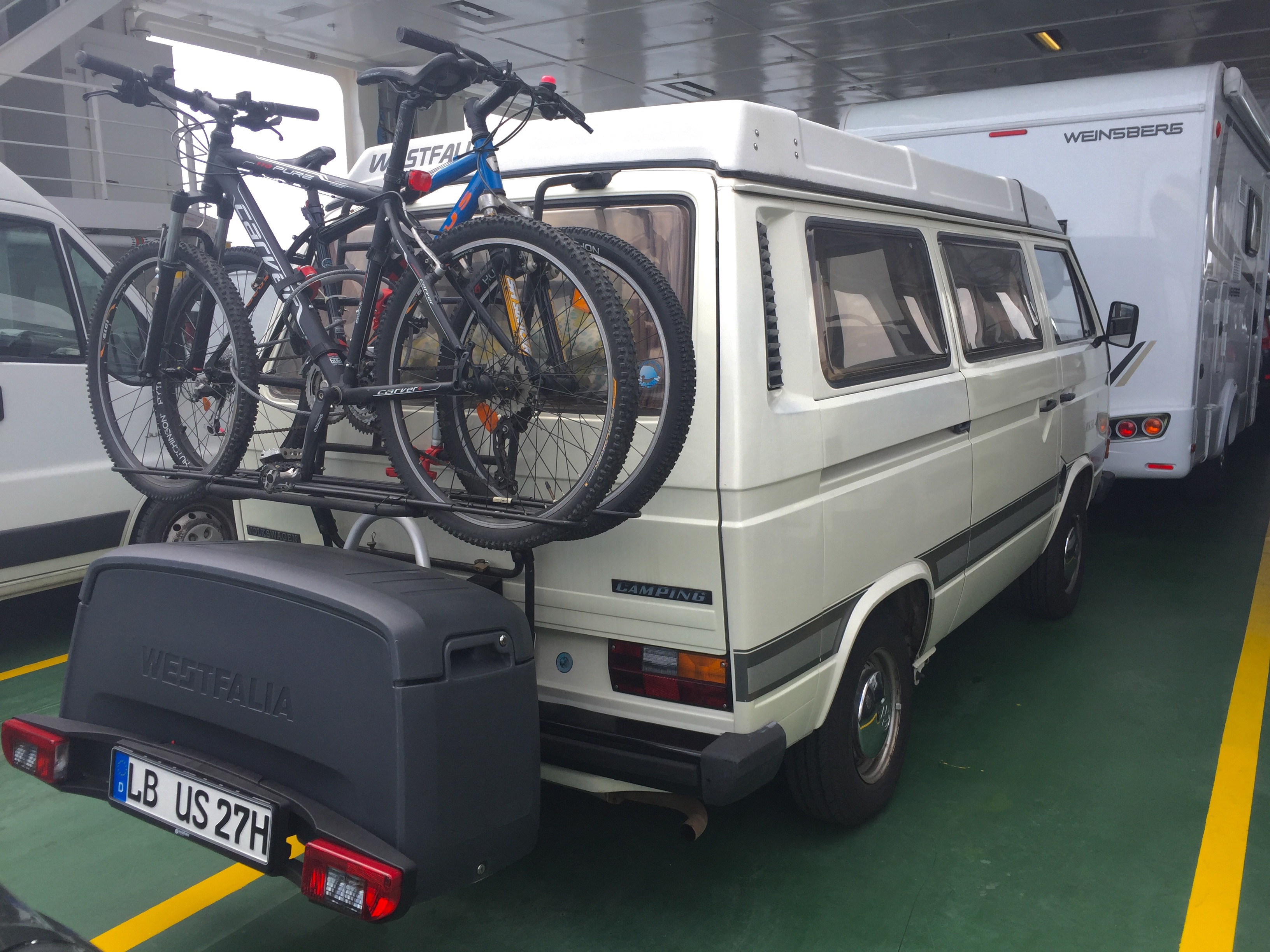

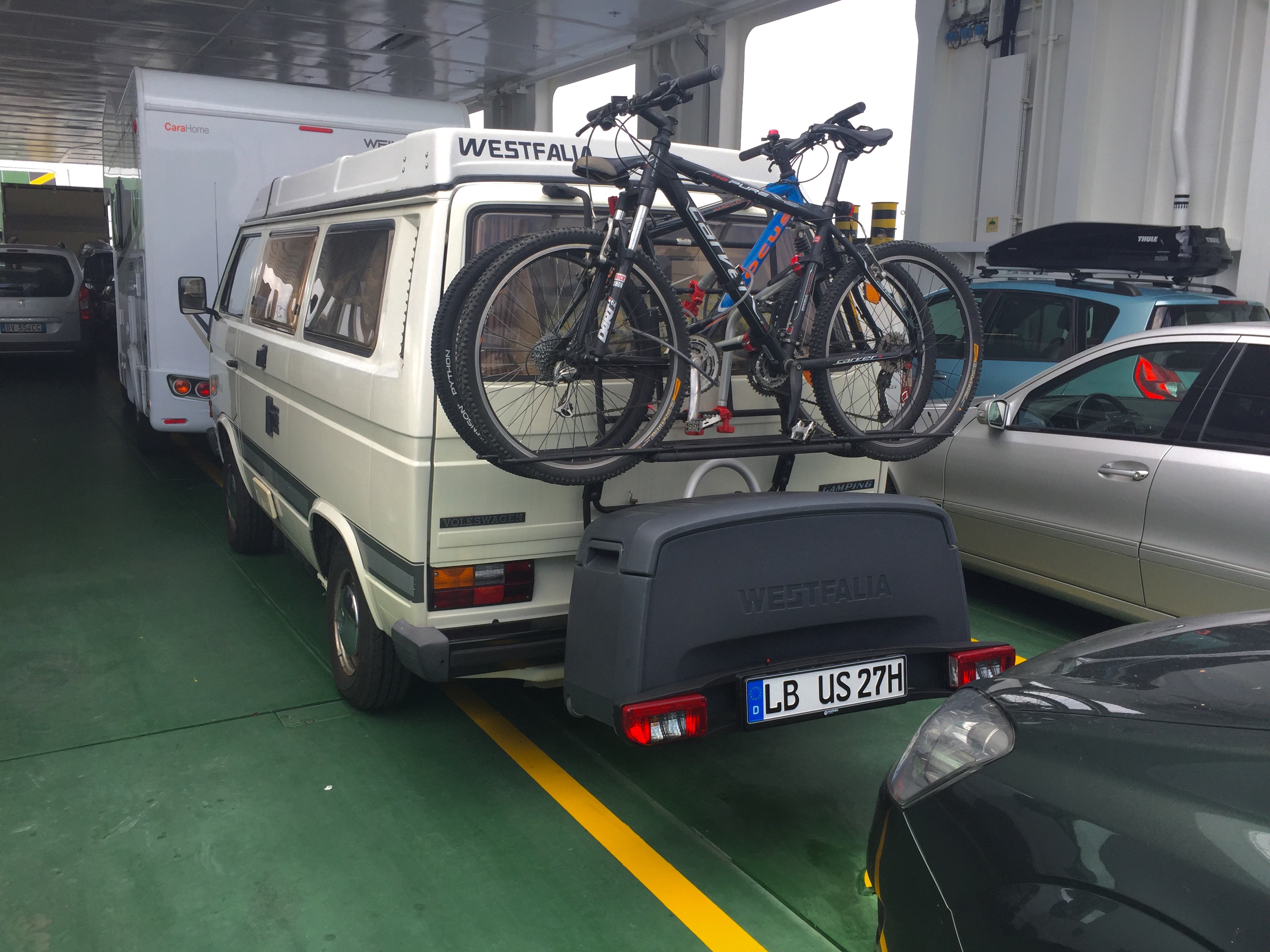

It’s sometimes has to be done, but I hate so much stuff hanging on the rear.

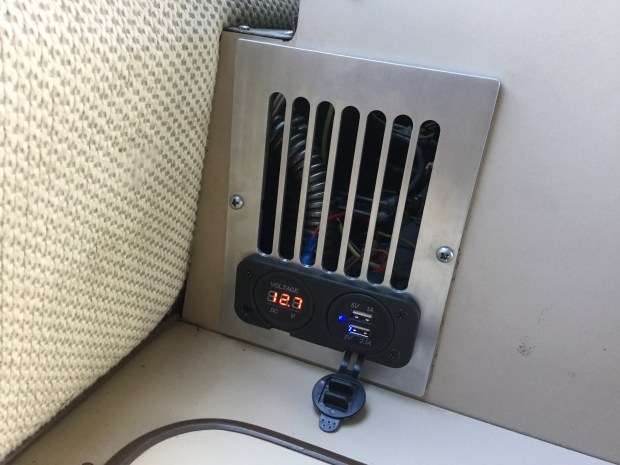

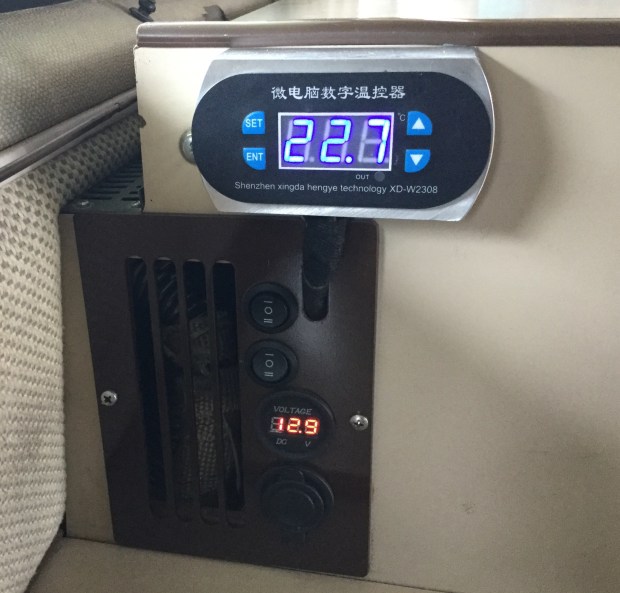

A while back I made an aluminum grill to replace the stock grill on the rear side of the kitchen unit. I made it such that it would house an USB dual outlet and a voltmeter. Later I rotated it so the outlets were in top.
It was ok, never did paint it. What bugged me was no switch to turn off the voltmeter and outlet. So with more enthusiasm than design skills I made another and this time added switches and painted. Btw I used krylon espresso brown which I was told was a good match for the brown in my older westy cabinetry. The pics don’t really show the colour well but it’s darker than stock.
That thing in the aluminum block is a digital controller I’m using for the fridge fin fan(s). More on that when I post my findings about my fridge mods. Yeah you can see a bit of sloppily applied insulation on the fridge exhaust pipe, that’s much less than originally installed. Again, more on that later.
Now I can switch on the volt meter and USB outlet. The thermo controller has its own on/off function. Extra switch thrown in there just in case.
I did make the vertical slots as long as I could, but I didn’t mean to slightly overlap the cabinet. Doh…
Also refined, ha, the “new style westy table on old style arm” mod, link and link, slimming the aluminum adapter down a tad and adding a plastic spacer, ( the red thing, don’t know what kind of plastic, might be Delrin).
And back to that espresso brown paint. I painted the little indicator panel on the kitchen unit front face. Maybe you can see the colour mis match in this pic. Nothing quite like taking a picture of something to make you realize just how beat up a thing is, man, look at those dents etc. Oh and another thing, trying this and that to bring back some life to the rest of the face plate. Paint was chalky and faded.

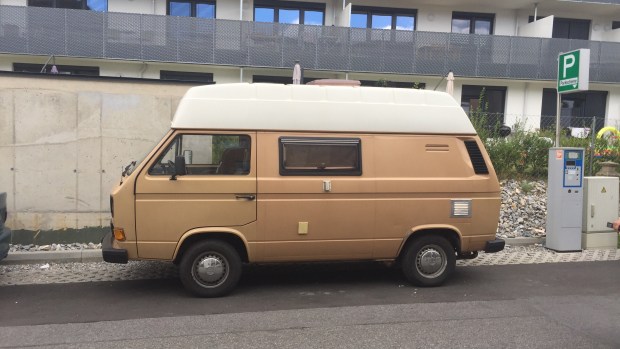

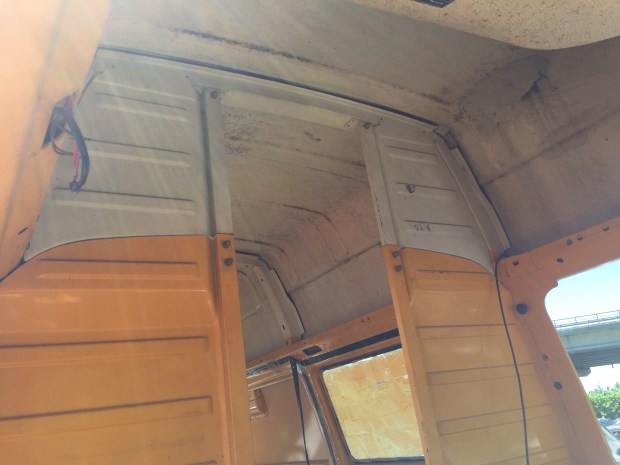

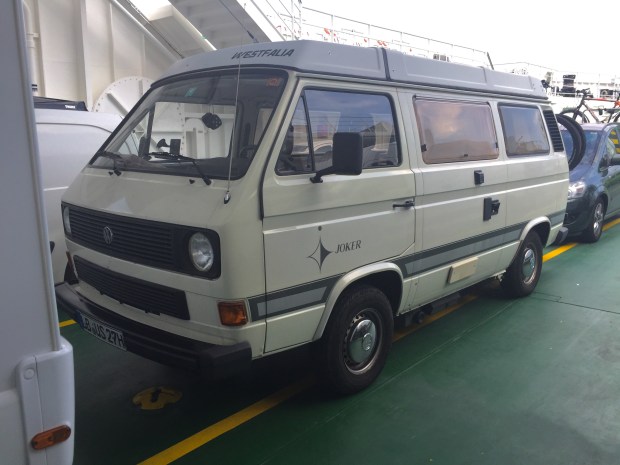

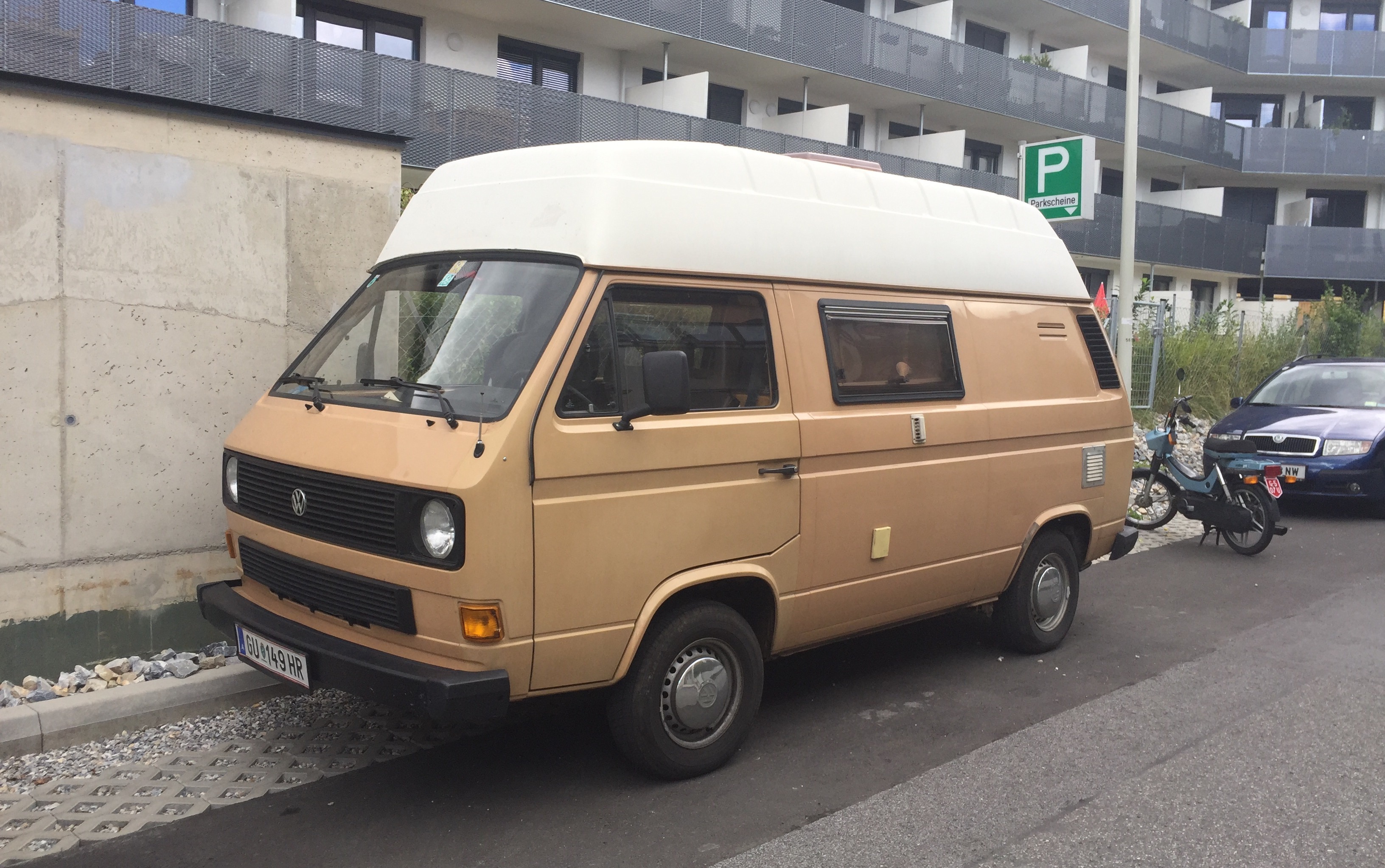

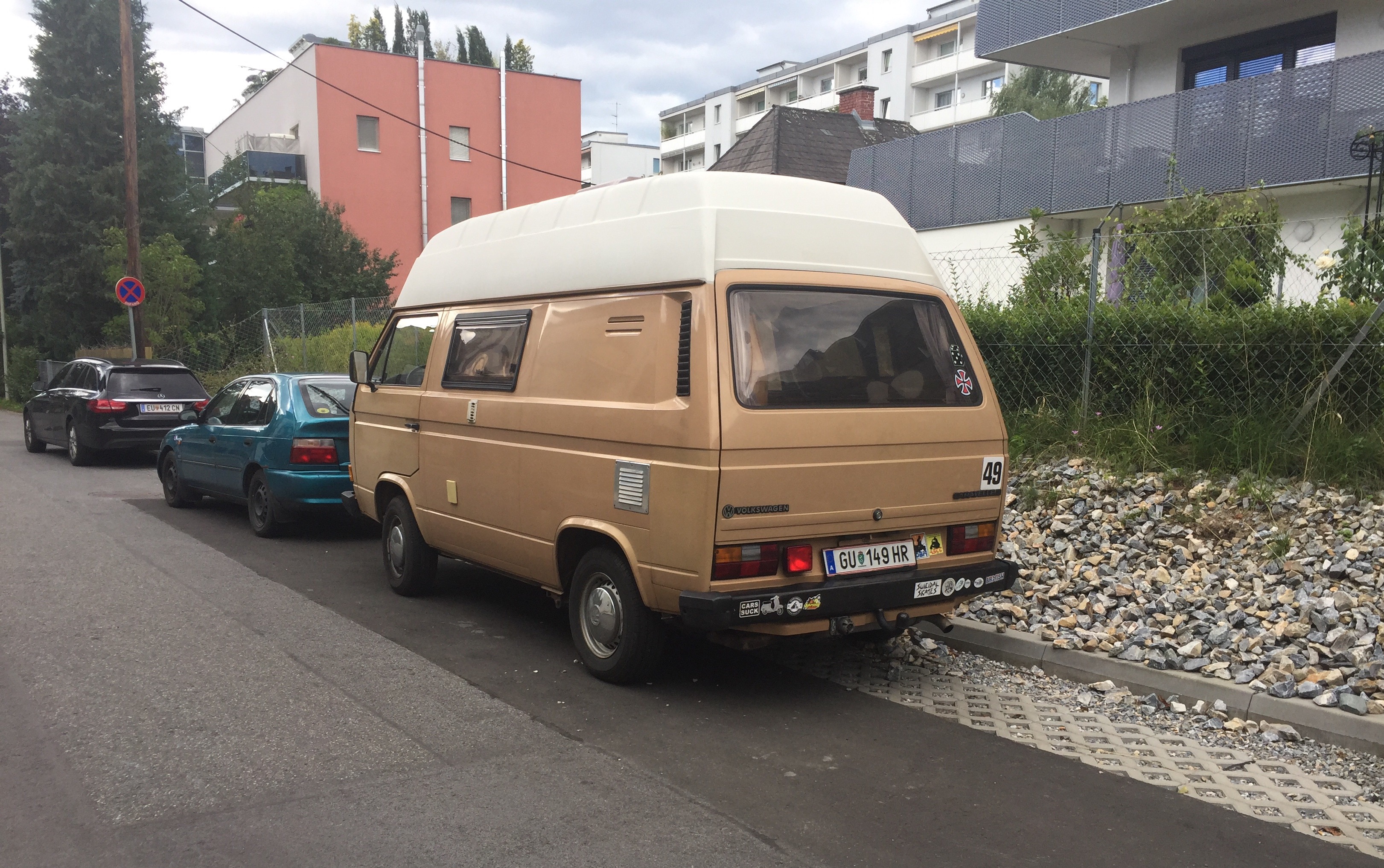

Peripatetic Simon is enroute to Croatia. He stopped at Graz and sent some pics of two Vanagons. I kinda like this style of hightop, most often seen on military vans. Note the double pane plastic side and rear hatch windows.

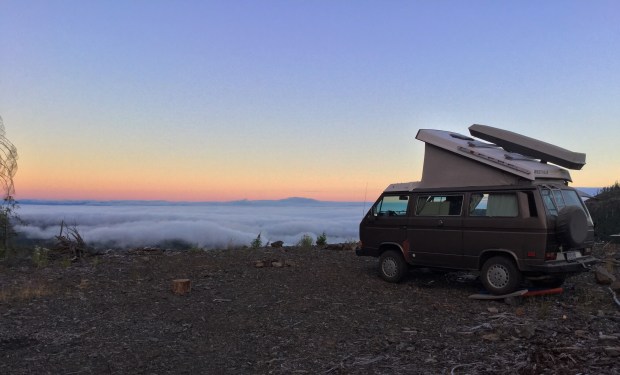

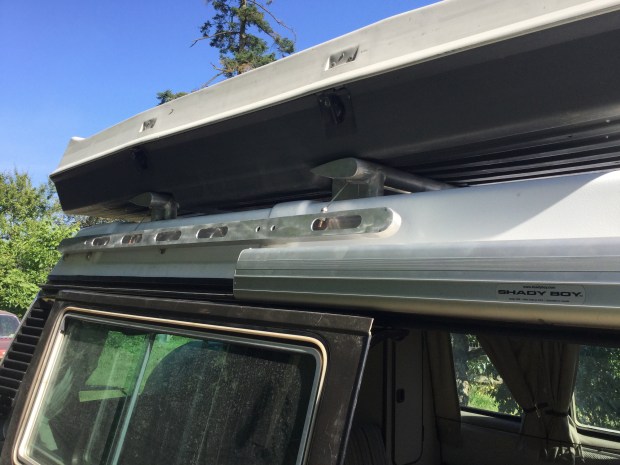

Last year I made a pretty clunky roof rack to hold my old Thule ski box. Seemed like a good idea at the time, using up some airfoil aluminum extrusion. But, and apart from my crappy welds, I think the end result was a bit off. Here is the link to the original post. At that time I was using an aluminum rail attached to the side of the pop top, it worked but I thought it flimsy.

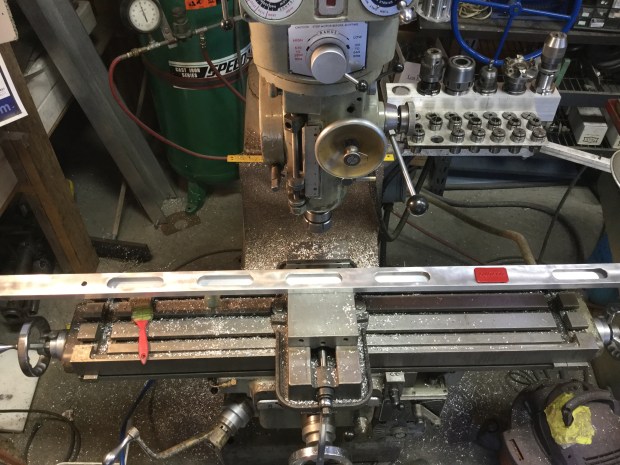

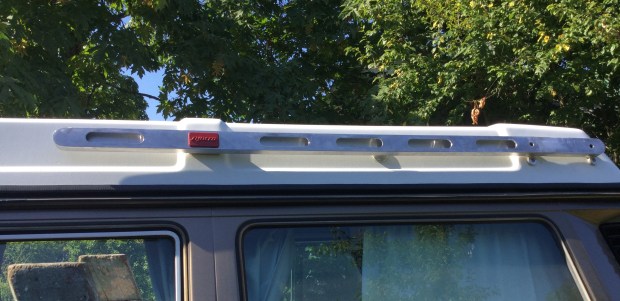

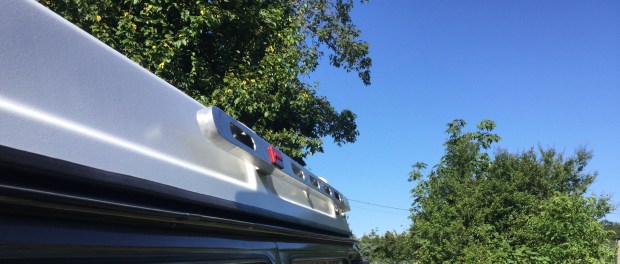

So… I made some new side rails from 1″X2″ aluminum box section. The rear Most section is bent to fit the contour of the roof, and I put in some slots for visual interest and to access the roof rack mounting system.
That red badge is from a Passat syncro station wagon found at wreckers. Annoying that even though the mounting hole for the badge is cantered on the tube, when the badge snaps on it lies off centre, grrr.

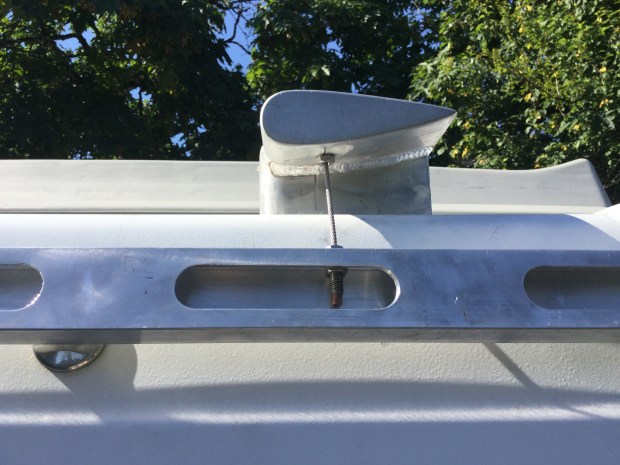

I came up with a novel method of holding the airfoil rack down onto the roof and side rails.

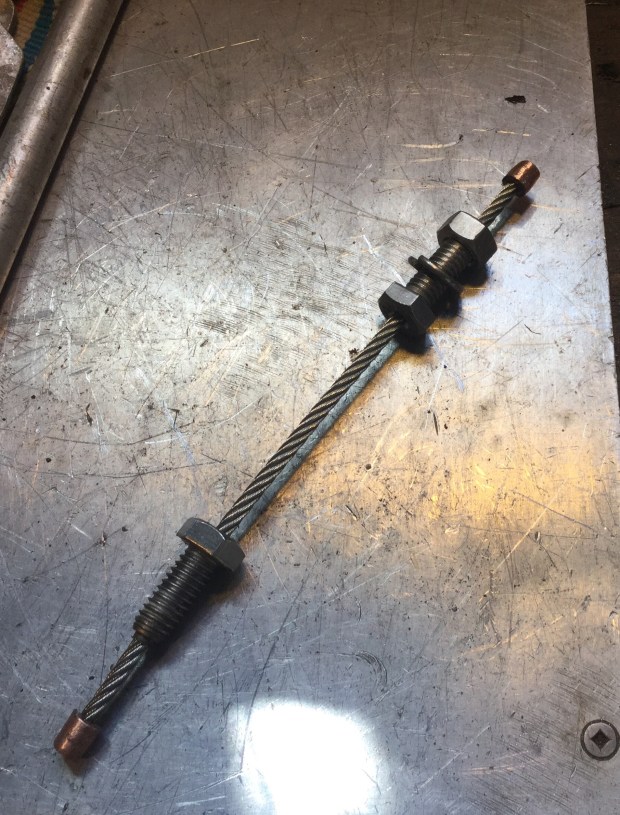

5/16″ NC bolts drilled out and holes chamfered, 1/8″ stainless cable with swaged ends (copper). The shorter bolt goes into the underside of the airfoil, stainless threaded inserts in the aluminum. The longer bolt goes through the box section side rail and tightened and locked with nuts.
That works surprisingly well, the cable tension is good, the rack gets pulled down firmly. The ski box is bolted to the airfoils, so that ties the two airfoils together. But even alone, the rack is very secure on the roof. I’ll paint the whole lot black some day.
Update: vanagon mailing list guesses include prop to keep loose vent window open and holding notes to metal dash. Good guesses and would work, but not the primary intent.

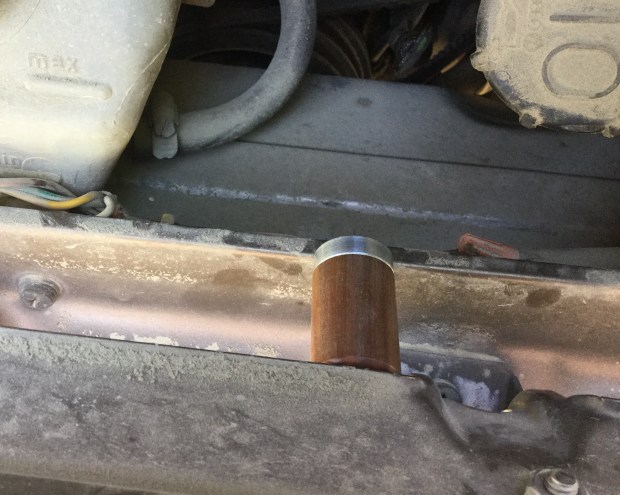

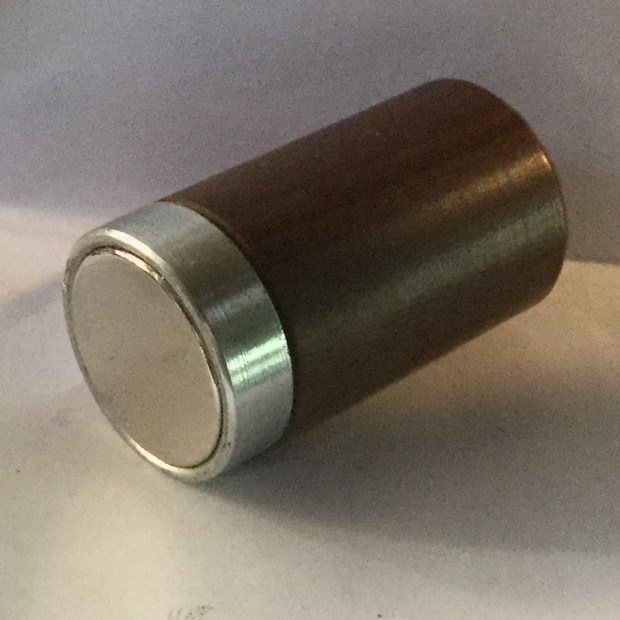

Good friend Stephen gave me this idea. Handy bit of wood with magnet on one end. It’s 1 1/2″ long, 3/4″ diameter. It could be another 3/4″ longer but works fine as is. Extra points if you can guess the wood (I’m looking at you, oldfussbudget). Wood hint, it’s never going to rot.
Oh and yes, can have more than one use, with that magnet and all.
